Thread: Eleaf iCare mini

  1. #1
    AVF Regular
    Join Date
    Apr 2013
    Location
    Mackay
    Posts
    5,355

    Eleaf iCare mini

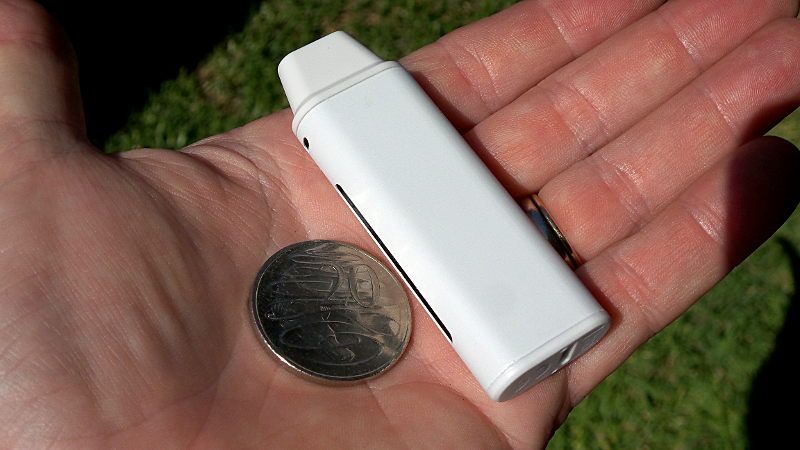

    So I finally pressed the buy button on one of these after seeing them advertised for quite a few weeks. I was attracted to it because it's tiny and doesn't look anything like a PV, and is a MTL device that doesn't produce huge clouds of vapour, all of which make it perfect for a stealth vape and while out and about. At less than 40 grams loaded for bear it doesn't weigh your pocket down either.

    I got the mini, because it's smaller. I also paid the extra $7 for the kit with the PCC because it's pretty good value, and will remove the need to carry a charger if I want to leave home with just this one device. It cost me $29 from Victory Vape, the only place in OZ that I could find them. The Mini on it's own is only $22, and the full size iCare is just in between.

    Some specs for you to compare the iCare and the iCare mini:
    Eleaf width height thickness tank battery PCC
    iCare mini 24.5mm 75mm 12mm 1.3ml 320mAh YES
    iCare (full size) 30mm 75mm 14mm 1.8ml 650mAh NO


    The output on both of these devices is the same, 15 watts maximum, and it seems like it will drop with the battery voltage. Eleaf said the battery should last one tank and that seems to have been the case. I didn't notice the drop off in power at all. These devices can be charged via USB and in the case of the mini also by a PCC (Portable charge case) which is available separately or as a kit.

    You get two IC 1.1 ohm coils in the box. Victory Vape don't seem to have been able to get the coils yet, but Fasttech list them at $4.49 for a five pack with a "ships in 5 days" proviso. The coils are very tiny but it should be possible to rebuild them if you have to. They have a bottom plug and grommet which holds the coil legs in the normal way. A vertical coil has some cotton sheet wrapped around it, which is then inserted in the threaded case.

    Filling the tank
    There's an almost full height window on the tank so you can see how much liquid is in it. Because the air tube displaces liquid, you can only fill the tank to the fill line which is about half way up the tank. I filled it right to the line and it did not overflow but it must have been awfully close - there was just the tiniest air bubble in the tank after I'd closed it off.

    I think some people will have trouble seeing the level and the fill line in normal room light, but it should be fine with good natural light. If you are trying to to fill it at night I've found the solution is to plug a charger into the USB port so the the red charging LED comes on inside the tank. This back lights the fill line, and the liquid level line is sparkly and clear.

    How it Vapes:
    It's not going to please everyone as it's strictly a mouth to lung device, as you'd imagine. It has a variable airflow which I have wide open because really don't like a tight vape. It's acceptabe for me with all five holes open. To adjust the airflow you need to access the tube the coil screws onto, which means removing it from the tank. There's a little collar with five holes on it which you twist to adjust. Only one hole open is quite tight but if you like taking a mouth suck type drag it might suit you.

    You can't just take a quick puff on this device because the coil doesn't heat up fast enough. A slow drag wins the race.

    I had some high nicotine juice in this because of the smaller amount of vapour and because of the intention to only vape it occasionally. This worked very well - it was a satisfying vape with a good defined throat hit on unflavoured. I believe the flavour on this device will be a bit muted (based on other reviews) so a strong menthol, mint, or cool type vape might be the way to go.

    With such a tiny battery in the mini you will use it up pretty quickly if you use this device normally. If you run a high nicotine content and only use it in cases where you can only vape occasionally it will go the distance. I figure the mini is good for about 75 puffs between charges, and maybe 100 puffs out of a tank (0.013ml per puff which seems about right)

    update 21/10/16:
    I'm running a 60/40 PG/VG 28mg/ml juice in this currently. I've never had a dry hit off it, it works perfectly. If it sits for a while the coil tends to flood a little which is easily fixed with a quick flick to clear it. I'm thinking a 50/50 mix might help to solve this problem a bit. The juice holes in the head are *tiny* so I'm wary of going too thick with the juice, and it's vitally important to prime the heads before first use.

    About the top cap:
    The mouthpiece is a flat tip which did not cause me any problems even though I don't normally like "whistle tip" type mouth pieces. This is because the device is flat and you are always holding it the right way. It serves three purposes: apart from the obvious hole for inhaling vapour, a second hole on the end of the mouth piece is ported through to the sensor for the automatic switch. The third use for the tip is as a spanner to undo the tank insert which Eleaf call the "air pipe" so you can fill it or change the coil. A word of warning here - if you force the tool, or don't have it on the insert neatly you might deform the inside of the cap. Since there are seals for the air pipe and it's a tight fit, deforming the cap would prevent you putting it on and would render the device useless.

    Other points
    This is a very cute little device, and it seems to be attracting a lot of attention. As a stealth device or as a companion device with a larger cloudsbro mod, it serves the purpose very well indeed. It's nice that it's not a closed system similar to other devices on the market which require changing pod$.

    With it's cuteness and quirky design comes a couple of things to be very careful of and they all involve that cap. I've mentioned about being careful not to deform the top cap, but you need to be careful of a couple of other things with it too. Now is a good time for a picture of the internals:



    The working parts in the full size unit are exactly the same. At the top of the air pipe is the keyed section used to undo it with the cap, and just below that are two o-rings which seal in the cap. Phil Busardo reported losing both o-rings on one of his devices so the first thing I did was put a bit of PG on them to lubricate them. I'm thinking he might have ripped the cap off with dry o-rings and that might have pulled them off. I remove the cap carefully and so far have had no problems. The cap has been on and off several times checking things for this review.

    The other problem occurs when putting the top cap back on. Because the port to the air pressure sensor is a large silicon nub, and because the air pipe is a tight fit also, sometimes the top cap doesn't seem to slide on easily. A little wiggle will normally cause it to sit down flat on the top of the device.

    Charging/Power indication
    The iCare uses the usual three colour LEDs to indicate battery charge level. This is very hard to see outdoors as the LEDs illuminate the tank. The LEDS also flash to indicate short circuit, 10 sec cutoff etc but you probably won't see them. The red LED goes on while charging, and goes off when it's finished.

    The iCare mini charges pretty quick as you'd imagine - about 20 to 25 minutes and it's good to go again.

    Paint Finish
    I was actually really pleased with the paint on this. It's a matt finish which feels really nice and seems very hard. I put it in my pocket with my keys (by accident) and found the key's had left marks. Not that the paint was damaged, the *keys* had actually rubbed off on the paint. I rubbed the marks with my finger and they came off. There is NO damage to the paint. It's a bit like when you rub a piece of unpolished ceramic with a piece of soft metal - the metal rubs off on the ceramic. I don't know what this paint is, but I wish Kanger would start using it on their mods: It's brilliant.

    Portable Charging Case



    I haven't used the PCC much yet except to charge and test it. It connects to the iCare mini magnetically when you slide it in the right way. If you insert the mini the wrong way the magnets repel and don't let it connect. Well done Eleaf!

    The electrical connection between the mini and the PCC is via two spring loaded pins on the PCC, not the micro USB port. It seems to work as advertised. Eleaf say the capacity of the PCC is 2300mAh, which should charge the mini about seven times. I think that would easily get me through a weekend with high nic juice if it had to.

    The LEDs on the PCC are weird. They indicate battery level with a flashing LED. They should have used the three colour system same as everything else. (Update, having used the PCC: ) The PCC seems to charge at 500mAh, which takes 4 to 4.5 hours and it charged the mini six times.

    Final thoughts:
    I'm pretty glad I bought this device. It's very portable so will be no trouble to carry on outings, to the shops, and anywhere else it might not be convenient to take a larger mod. It works well enough with high nicotine juice to give a satisfying throat hit, but does not make large attention grabbing plumes of vapour. Stealth vaping is very easily achieved. If you're looking for a very stealthy device or a high nic companion device then this might fit the bill.
    Last edited by fabricator4; 21-11-16 at 08:58 AM.
    Chris: Tobacco free since 17:00 15th March 2013.

  2. #2
    AVF Regular
    Join Date
    Jun 2012
    Location
    Gold Coast Qld
    Posts
    3,785
    Great review there Fab. Sure you dont pen for Wikipedia? Lol. .pulling ya leg. Good write up mate. Could almost confuse that with my dongle.
    fabricator4 likes this.

  3. #3
    AVF Regular
    Join Date
    Mar 2014
    Location
    Brisbane
    Posts
    1,118
    I'm thinking international travel with this.... cheap enough to throw if foreign immigration in a "banned" country picks up on it.

    All we need is a keyring attachment now
    fabricator4, AllyP and 1ynne like this.

  4. #4
    AVF Regular
    Join Date
    Apr 2013
    Location
    Mackay
    Posts
    5,355
    Quote Originally Posted by singlefished View Post
    I'm thinking international travel with this.... cheap enough to throw if foreign immigration in a "banned" country picks up on it.

    All we need is a keyring attachment now
    The thought crossed my mind. With a bottle of eliquid and prescription from NicoPharm it's a medical device.
    AllyP likes this.
    Chris: Tobacco free since 17:00 15th March 2013.

  5. #5
    Super Moderator
    Join Date
    Jan 2012
    Location
    Ghost Town (Whyalla), SA
    Posts
    13,377
    I have used it's bigger brother, interesting that the smaller one performs the same. One point, if the mouthpiece isn't on correctly the device will autofire.

    Good review Fab4
    Fatman, fabricator4 and AllyP like this.


    The bitterness of poor quality remains long after the sweetness of low price is forgotten. - Benjamin Franklin
    Just because you are offended doesn't mean you are right ...


    Please read these rules


    There isn't enough room to list my gear

  6. #6
    AVF Newbie | Be nice to me
    Join Date
    Aug 2012
    Location
    Israel
    Posts
    6
    You can link to the merchant's site?


    Отправлено с моего iPhone используя Tapatalk

  7. #7
    AVF Regular
    Join Date
    Apr 2013
    Location
    Mackay
    Posts
    5,355
    Quote Originally Posted by prenko View Post
    You can link to the merchant's site?


    Отправлено с моего iPhone используя Tapatalk
    I guess so, but you should be able to find them closer to you.

    Victory Vape: iCare + PCC
    Chris: Tobacco free since 17:00 15th March 2013.

  8. #8
    AVF Regular
    Join Date
    Apr 2013
    Location
    Mackay
    Posts
    5,355
    Quote Originally Posted by gtadmin View Post
    I have used it's bigger brother, interesting that the smaller one performs the same. One point, if the mouthpiece isn't on correctly the device will autofire.
    I've been trying to replicate this but can't. The only thing I can think of is if the silicon port to the sensor is squashed or blocked, if you suck on it hard enough it might be enough to cause a low pressure inside there which then can't be equalised again.

    I did manage to confuse it at one point - I covered all of the ports including the tank window and took a puff (I was trying to work out where the air was coming from because if you cover the obvious slot at the top it still gets air. Of course it fired when I did this, but it didn't stop firing. After it stopped firing it wouldn't fire again when I took a drag (Oh no! I've broken it!). All I did was cover the holes again and puff a little air *into* it and it was fine after that. I'm thinking there's a filter or something over the front of the sensor that is dense enough to hold pressure for a short amount of time, or it's some kind of comparator circuit that is used in the pressure switch circuit and I confused it.
    Chris: Tobacco free since 17:00 15th March 2013.

  9. #9
    AVF Regular
    Join Date
    Apr 2013
    Location
    Mackay
    Posts
    5,355
    Oh, and Victory Vape are sold out of both black and white again. I guess I was lucky to get one.

    They still have cyan white and red without the PCC. :-D

    Cyan? I think it's a dead-set green...
    Last edited by fabricator4; 13-10-16 at 05:06 PM.
    Chris: Tobacco free since 17:00 15th March 2013.

  10. #10
    AVF Regular
    Join Date
    Oct 2013
    Location
    Sydney
    Posts
    539
    I have been using one for just over 3 weeks I think. The bigger one, and I quite like it for what it is.

    I agree with what has been said so far.

    I found the coils last me about 7 to 8 days and that is using it several times a day amongst all my other stuff.

    But it is always in my pocket as it is so small. I use 36mg/ml liquid with all air holes open for a fast and satisfying nic hit.

    With the coils not being available in Australia yet, I had to re-coil one and it wasn't too hard to do once I worked out the details.

    I reused the outer wicking tape stuff after washing it and replaced the inner bit directly around the coil with the outer skin bit from some KGD cotton.

    If you pull one apart you will probably understand what I mean.

    If new coils don't hit our shore soon I will have to do another rebuild which is a nuisance because I bought this for total ease of use and I have enough rewicking

    to do as it is.

    The reason I reused the cotton tape stuff was because I read others that used cotton or rayon and were getting flooding.

    Mine is working really well after a few initial tries. I used a 2mm ID in the end. To get it working about the same you really need to keep the resistance around 1.1 ohms...ish.
    Last edited by Christian R; 13-10-16 at 08:49 PM.
    fabricator4 and Mr Young like this.
